F-Link XP

Plug-In Expansion unit adds further dimension to F-Link4 System

F-Link XP

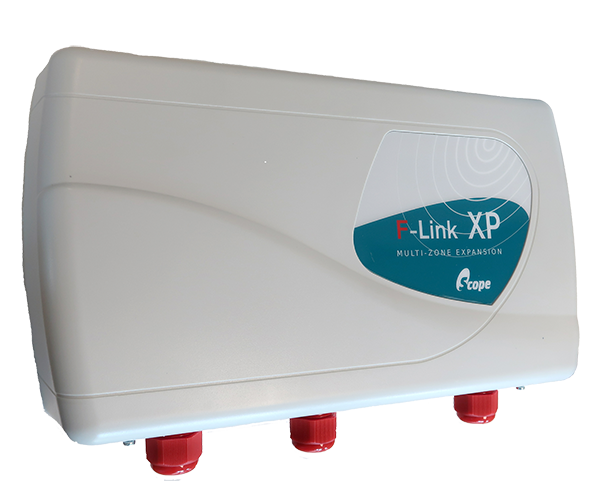

Switched relay expansion unit for F-Link4 System

When any F-Link unit goes into alarm, it shows it’s identity and alert type on the display screen of all F-Link units in the network.

For sites where it is also required to indicate on the Master fire control panel which remote F-Link node has gone into alarm, the F-LINK XP provides the solution.

Key Features

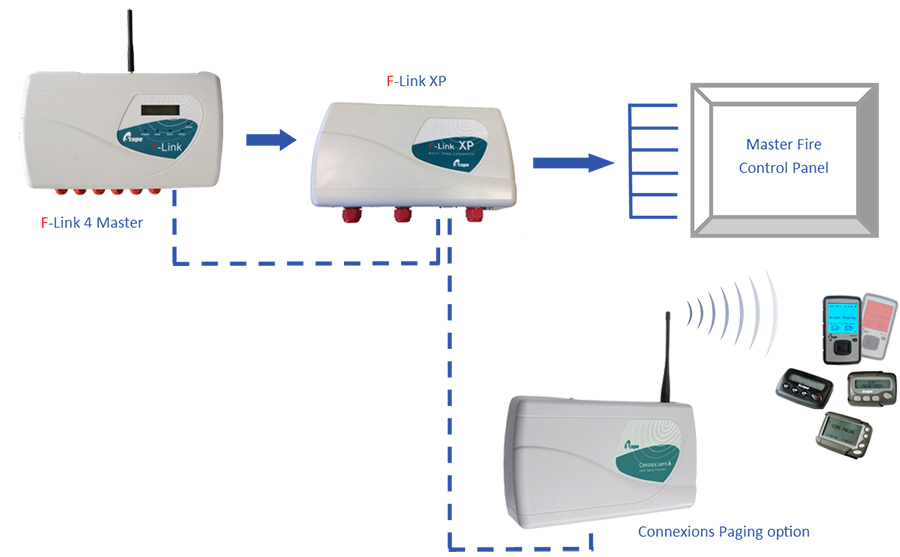

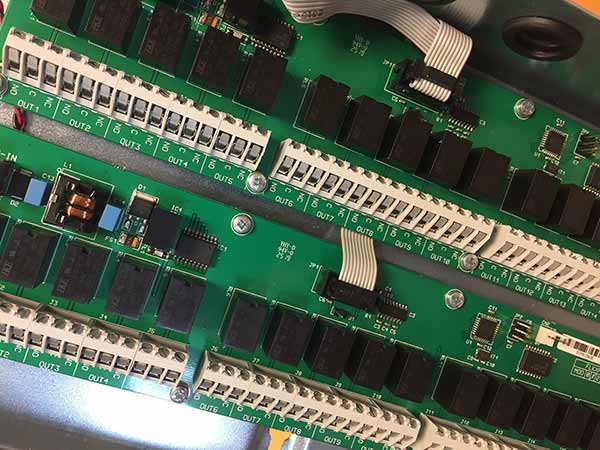

  • 15 switched relay outputs notify the Master Fire Panel which F-Link has gone into alarm
  • Power input common with the F-Link 4 (12-24V dc)

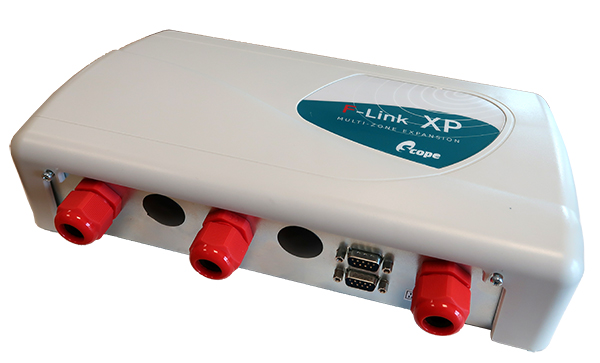

  • Data cable included for connection to Master F-Link unit
  • Configuration software assigns each relay to an F-Link node for notifying a “Fire” event
  • Alternative configuration allows both “Fire” and “Fault” events for up to 7 nodes
  • XP30 unit (30 relays) allows both “Fire” and “Fault” events  for all 15 nodes
F-Link XP
15 switched relay outputs notify the Master Fire Panel which F-Link has gone into alarm Power input common with the F-Link 4 (12-24V dc) Data cable included for connection to Master F-Link unit Configuration software assigns each relay to an F-Link node for notifying a “Fire” event Alternative configuration allows both “Fire” and “Fault” events for up to 7 nodes XP30 unit (30 relays) allows both “Fire” and “Fault” events for all 15 nodes
Download DataSheet

Specifications​

XP15​:

15 relay contacts (NC,NO,C)​

XP30​:

30 relay contacts (NC,NO,C)​

Contact rating​:

1A @ 24V dc​

Power In:​

12-24V dc @ 1A​

Data In:

9 way D type null modem lead​

Footprint:​

(H) 190 x (W) 335 x (D) 70 mm​

F-Link XP

See data sheet for full specification

Scope’s policy is one of continuous development and specifications are subject to change without prior notice​
